Aquí encontrará todas las piezas y dibujos técnicos disponibles de 'Milwaukee 4000510047 ( M18F2SSBL-0 )'. Desde aquí podrá pedir todas las piezas deseadas directamente. Para muchas piezas de repuesto, es necesario pasar un pedido al fabricante. Dependiendo de la marca, el plazo de entrega puede variar entre una y cuatro semanas. Toda la información que tenemos está en nuestro sitio web. No podremos aconsejarle sobre lo que necesita hasta que entregue la máquina para su reparación. Tenga en cuenta lo siguiente a la hora de cursar su pedido:

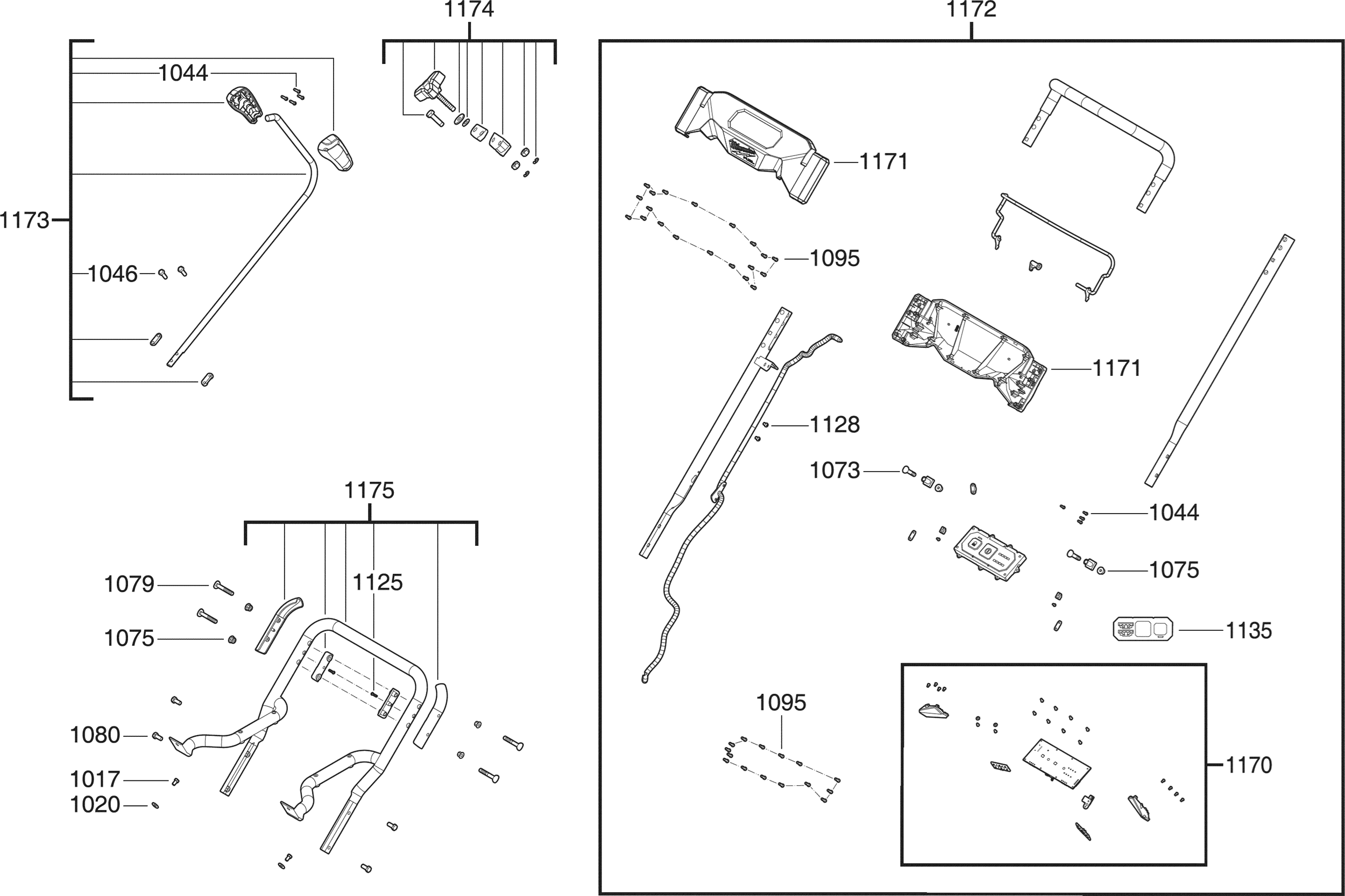

Dibujo técnico de los/las Milwaukee 4000510047 ( M18F2SSBL-0 )
Lista de las piezas de repuesto de Milwaukee 4000510047 ( M18F2SSBL-0 )
| Pos. | Descripción | Precio con el IVA excluido | Precio con el IVA incluido | |
| Los precios mostrados incluyen el IVA | ||||
| SCREW (14 benodigd) | ||||
| 1017 | 4931508419 | 3.00 | 3.63 | |
| WASHER (25 benodigd) | ||||
| 1020 | 4931508420 | 3.00 | 3.63 | |
| Tornillo | ||||
| 1044 | 660570005 | 3.60 | 4.36 | |
| BOLT (2 benodigd) | ||||
| 1046 | 4931508421 | 3.00 | 3.63 | |
| SCREW (2 benodigd) | ||||
| 1073 | 4931508422 | 3.60 | 4.36 | |
| FLANGE NUT (6 benodigd) | ||||
| 1075 | 4931508423 | 3.60 | 4.36 | |
| SCREW (4 benodigd) | ||||
| 1079 | 4931508424 | 3.60 | 4.36 | |
| SCREW (4 benodigd) | ||||
| 1080 | 4931508425 | 3.60 | 4.36 | |
| Tornillo | ||||
| 1095 | 4931465326 | 3.60 | 4.36 | |
| SCREW (2 benodigd) | ||||
| 1125 | 4931508426 | 3.00 | 3.63 | |
| Tornillo | ||||
| 1128 | 4931466677 | 1.80 | 2.18 | |
| LABEL | ||||
| 1135 | 4931508427 | 6.00 | 7.26 | |
| ELECTRONIC | ||||
| 1170 | 4931508428 | 95.70 | 115.80 | |
| HOUSING | ||||
| 1171 | 4931508429 | 63.80 | 77.20 | |
| HANDLE BAR | ||||
| 1172 | 4931508430 | 283.80 | 343.40 | |
| ROD | ||||
| 1173 | 4931508431 | 91.30 | 110.47 | |
| KNOB | ||||
| 1174 | 4931508432 | 66.00 | 79.86 | |
| HANDLE | ||||
| 1175 | 4931508433 | 105.60 | 127.78 | |
| Tornillo | ||||
| 2004 | 661164001 | 3.60 | 4.36 | |
| SCREW (13 benodigd) | ||||
| 2010 | 4931508434 | 3.00 | 3.63 | |
| Tornillo | ||||
| 2012 | 4931435015 | 3.60 | 4.36 | |
| Ya no disponible, sin reemplazo | ||||
| 2015 | 4931447515 | |||
| COVER | ||||
| 2016 | 4931508435 | 22.00 | 26.62 | |
| SCREW (10 benodigd) | ||||
| 2019 | 4931508436 | 3.60 | 4.36 | |
| BUSHING (14 benodigd) | ||||
| 2021 | 4931508437 | 3.00 | 3.63 | |
| NUT (16 benodigd) | ||||
| 2022 | 4931508438 | 3.00 | 3.63 | |
| SCREW (2 benodigd) | ||||
| 2023 | 4931508439 | 3.60 | 4.36 | |
| PADDLE ASSEMBLY (2 benodigd) | ||||
| 2024 | 4931508440 | 75.90 | 91.84 | |
| PLATE (3 benodigd) | ||||
| 2037 | 4931508441 | 3.00 | 3.63 | |
| NUT (2 benodigd) | ||||
| 2038 | 4931508442 | 3.00 | 3.63 | |
| GROMMET | ||||
| 2039 | 4931508443 | 3.60 | 4.36 | |
| SCREW (2 benodigd) | ||||
| 2040 | 4931496891 | 1.80 | 2.18 | |
| SIDE DISCHARGE CHUTE | ||||
| 2041 | 4931508444 | 30.80 | 37.27 | |
| SPRING (2 benodigd) | ||||
| 2048 | 4931508445 | 4.80 | 5.81 | |
| CROSS BRACKET (4 benodigd) | ||||
| 2049 | 4931508446 | 8.40 | 10.16 | |
| SCRAPER SET | ||||
| 2050 | 4931508447 | 36.30 | 43.92 | |
| MOTOR | ||||
| 2051 | 4931508448 | 216.15 | 261.54 | |
| SCREW (4 benodigd) | ||||
| 2052 | 4931494114 | 1.80 | 2.18 | |
| PULLEY | ||||
| 2053 | 4931508449 | 8.40 | 10.16 | |
| SPRING | ||||
| 2054 | 4931508450 | 3.60 | 4.36 | |
| BUSHING | ||||
| 2057 | 4931508451 | 4.80 | 5.81 | |
| SCREW (5 benodigd) | ||||
| 2058 | 4931508452 | 3.60 | 4.36 | |
| SCREW | ||||
| 2059 | 4931508453 | 3.00 | 3.63 | |
| BALL BEARING (2 benodigd) | ||||
| 2064 | 4931508454 | 7.20 | 8.71 | |
| COVER | ||||
| 2065 | 4931508455 | 7.20 | 8.71 | |
| PULLEY | ||||
| 2066 | 4931508456 | 25.30 | 30.61 | |
| SCREW | ||||
| 2067 | 4931508457 | 3.60 | 4.36 | |
| BELT | ||||
| 2068 | 4931508458 | 16.50 | 19.96 | |
| CLAMP | ||||
| 2104 | 4931508459 | 3.60 | 4.36 | |
| COVER | ||||
| 2110 | 4931508460 | 28.60 | 34.61 | |
| NUT (6 benodigd) | ||||
| 2111 | 4931508461 | 3.00 | 3.63 | |
| BODY | ||||
| 2114 | 4931508462 | 262.90 | 318.11 | |
| HOUSING | ||||
| 2116 | 4931508463 | 51.70 | 62.56 | |
| WASHER (4 benodigd) | ||||
| 2117 | 4931508464 | 3.00 | 3.63 | |
| SCREW (2 benodigd) | ||||
| 2121 | 4931508465 | 3.00 | 3.63 | |
| WASHER (4 benodigd) | ||||
| 2130 | 4931508466 | 3.00 | 3.63 | |
| BUSHING (2 benodigd) | ||||
| 2131 | 4931508467 | 4.80 | 5.81 | |
| WRENCH | ||||
| 2132 | 4931508468 | 13.20 | 15.97 | |
| RATING PLATE | ||||
| 2137 | 4931510735 | 6.00 | 7.26 | |
| PLATE (2 benodigd) | ||||
| 2152 | 4931508469 | 4.80 | 5.81 | |
| BRACKET | ||||
| 2153 | 4931508470 | 24.20 | 29.28 | |
| SCREW (2 benodigd) | ||||
| 2154 | 4931508471 | 3.00 | 3.63 | |
| HOUSING | ||||
| 2180 | 4931508472 | 600.60 | 726.73 | |
| PADDLE ASSEMBLY | ||||
| 2181 | 4931508473 | 215.60 | 260.88 | |
| WHEEL (2 benodigd) | ||||
| 2182 | 4931508474 | 44.00 | 53.24 | |
| TENSIONING DEVICE | ||||
| 2183 | 4931508475 | 23.10 | 27.95 | |
| HINGE PIECE | ||||
| 3078 | 4931508476 | 6.00 | 7.26 | |
| BUSHING | ||||
| 3151 | 4931508477 | 3.60 | 4.36 | |
| SHAFT | ||||
| 3155 | 4931508478 | 41.80 | 50.58 | |
| PINION | ||||
| 3156 | 4931508479 | 30.80 | 37.27 | |
| BUSHING | ||||
| 3157 | 4931508480 | 3.60 | 4.36 | |
| FLANGE NUT | ||||
| 3158 | 4931508481 | 3.00 | 3.63 | |
| BEVEL GEAR | ||||
| 3159 | 4931508482 | 17.60 | 21.30 | |
| CONNECTION PLATE | ||||
| 3190 | 4931508483 | 132.00 | 159.72 | |
| FRAME | ||||
| 3191 | 4931508484 | 90.20 | 109.14 | |
| LABEL | ||||
| 3192 | 4931508485 | 40.70 | 49.25 | |
| MAGNET | ||||
| 3193 | 4931508486 | 26.40 | 31.94 | |
| COVER | ||||
| 3194 | 4931508487 | 37.40 | 45.25 | |
| SCREW (5 benodigd) | ||||
| 4032 | 4931508488 | 3.00 | 3.63 | |
| SCREW (22 benodigd) | ||||
| 4118 | 4931508489 | 3.00 | 3.63 | |
| SIDE DISCHARGE CHUTE | ||||
| 4200 | 4931508490 | 94.60 | 114.47 | |
